Multithreading#
In the previous example, csound was executed by calling .performKsmps directly, within a loop. To use Csound in a more flexible way it is advisable to run the performance loop in a dedicated thread
Cound has a helper class called PerformanceThread, which creates a native thread and runs the performance loop of an existing csound instance on that thread. The main Python thread is thus not blocked, allowing the user to interract with it, while the performance thread runs concurrently, outside of the GIL. The user can send messages to the performance thread to toggle pause, schedule input evets, etc.
Example#
[1]:
import libcsound
cs = libcsound.Csound()
cs.setOption('-d -odac -m0')
cs.compileOrc(r'''
sr = 48000
ksmps = 64
nchnls = 2
0dbfs = 1
instr 1
iamp, ipitch, iattack, idec, ipan passign 4
aenv = linen:a(1, iattack, p3, idec)
asig = poscil(iamp, mtof(ipitch)) * aenv
a1, a2 pan2 asig, ipan
outs a1, a2
endin
''')
[1]:
0
This creates a new thread with the existing csound process
[2]:
thread = cs.performanceThread()
# Calling .play starts the csound process, if not already started
thread.play()
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
audio buffered in 256 sample-frame blocks
writing 512 sample blks of 64-bit floats to dac
SECTION 1:
Send messages to the performance thread to schedule events
[3]:
thread.scoreEvent(False, 'i', (1, 0, 1, 0.5, 60, 0.05, 0.3, 0.2))
thread.scoreEvent(False, 'i', (1, 0.5, 1, 0.5, 62, 0.05, 0.3, 0.8))
When we’re done, we stop the performance thread:
[4]:
thread.stop()
thread.join()
del cs
overall amps: 0.62995 0.62998
overall samples out of range: 0 0
0 errors in performance
4615 512 sample blks of 64-bit floats written to dac
A more complex example: csound is run by the performance thread while python is used to schedule events. Timing is done via csound
[5]:
cs = libcsound.Csound()
# Change as needed
# cs.setOption('-odac')
cs.setOption('-+rtaudio=jack -odac:Built-in' )
# Disable printing whenever a new event is scheduled
cs.setOption('-m128')
# The orchestra
cs.compileOrc(r'''
sr = 48000
nchnls = 2
ksmps = 64
0dbfs = 1
instr 1
iamp = p4
ipitch = p5
iattack = p6
irelease = p7
a0 = oscili(iamp, mtof(ipitch)) + oscili(iamp, mtof(ipitch+0.12))
outall a0 * linsegr:a(0, iattack, 1, iattack*2, 0.2, irelease, 0)
endin
''')
thread = cs.performanceThread()
thread.play()
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:Built-in Audio Analog Stereo:playback_FL)
1: dac1 (dac:Built-in Audio Analog Stereo:playback_FR)
2: dac2 (dac:csoundengine.engine0:input1)
3: dac3 (dac:csoundengine.engine0:input2)
4: dac4 (dac:csoundengine.engine0:input3)
5: dac5 (dac:csoundengine.engine0:input4)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac:Built-in
SECTION 1:
[6]:
import random
import time
scale = [0, 2, 4, 5, 7, 9, 11]
pitches = [60 + 12 * octave + step for octave in [0, 1, 2] for step in scale]
chords = [(2, 4, 7), (4, 5), (2, 7, 11), (0, 5, 9), (9, 11), (0, 2), (0, 4, 7)]
chord = random.choice(chords)
def getparams(pitch, chord):
if pitch % 12 in chord:
dur = random.uniform(1.5, 2.5)
amp = random.uniform(0.04, 0.2)
att = random.uniform(0.01, 0.1)
rel = random.uniform(0.4, 0.8)
else:
dur = random.uniform(0.1, 0.2)
amp = random.uniform(0.04, 0.08)
att = 0.01
rel = 0.3
return dur, amp, att, rel
sr = cs.sr()
t0 = tchord = tstart = cs.currentTimeSamples() / sr
# Record output to be able to embed it in the notebook
thread.record("threading-example1.wav", 16, 4)
while True:
t = cs.currentTimeSamples() / sr
# Break after 30 seconds
if t - tstart > 30:
break
if t - t0 > 1/8.:
pitch = random.choice(pitches)
dur, amp, att, rel = getparams(pitch, chord)
thread.scoreEvent(False, 'i', (1, 0, dur, amp, random.choice(pitches), att, rel))
t0 = t
time.sleep(1/16.)
if t - tchord > 8:
chord = random.choice(chords)
tchord = t
else:
time.sleep(1/64.)
thread.stopRecord()
[11]:
import IPython
IPython.display.Audio("threading-example1.mp3")
[11]:
Csound 7: Better Performance Thread#
When running csound with a performance thread, any direct access to the API (using the Csound object) can result in unbounded delays due to locking.
Csound 7 introduced new functionality to the PerformanceThread, allowing it to compile, evaluate and call ad-hoc tasks in the background with low latency access to the API. This new functionality can be accessed via the methods .compileOrc (similar to Csound.compileOrc), .evalCode (similar to Csound.evalCode) and .requestCallback (can be used for general purpose access to the API without latency).
In the next example we perform the same code, once using the API directly, and once using the performance thread.
[5]:
import time
import libcsound
if libcsound.VERSION < 7000:
raise RuntimeError("This functionality is not present in csound 6")
cs = libcsound.Csound()
cs.setOption('-odac')
cs.compileOrc(r'''
sr = 48000
nchnls = 2
ksmps = 64
0dbfs = 1
''')
thread = cs.performanceThread()
thread.play()
t0 = time.time()
cs.compileOrc(r'''
gi_tab1 ftgen 1, 0, 200, -2, 0
instr 1
iamp, ipitch, iattack, irelease passign 4
a0 = oscili(iamp, mtof(ipitch)) + oscili(iamp, mtof(ipitch+0.12))
outall a0 * linsegr:a(0, iattack, 1, iattack*2, 0.2, irelease, 0)
endin
''')
thread.scoreEvent(False, "i", [1, 0, 10, 0.1, 72, 0.01, 0.1])
print(f'Latency using API: {(time.time() - t0) * 1000:.3f} ms')
t0 = time.time()
thread.compileOrc(r'''
gi_tab2 ftgen 2, 0, 200, -2, 0
instr 2
iamp, ipitch, iattack, irelease passign 4
a0 = oscili(iamp, mtof(ipitch)) + oscili(iamp, mtof(ipitch+0.12))
outall a0 * linsegr:a(0, iattack, 1, iattack*2, 0.2, irelease, 0)
endin
''')
thread.scoreEvent(False, "i", [2, 0, 10, 0.1, 73, 0.01, 0.1])
print(f'Latency using the performance thread: {(time.time() - t0) * 1000:.3f} ms')
Latency using API: 58.721 ms
Latency using the performance thread: 0.478 ms
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
ALSA output: total buffer size: 1024, period size: 256
writing 512 sample blks of 64-bit floats to dac
SECTION 1:
ftable 1:
ftable 1: 200 points, scalemax 0.000
ftable 2:
ftable 2: 200 points, scalemax 0.000
T 0.085 TT 0.085 M: 0.00000 0.00000
new alloc for instr 1:
WARNING: instr 1 uses 3 p-fields but is given 7
new alloc for instr 2:
WARNING: instr 2 uses 3 p-fields but is given 7
Running arbitrary code from a performance thread#
Csound 7 provides a new method to run code within the context of the performance thread: the .requestCallback method. This is an efficient alternative to setting the process callback. Setting the process callback can have a negative impact in performance within certain threaded contexts, resulting in audio dropouts.
In the example below we can create a table and access its table pointer using the performance thread in a very efficient way
[3]:
from libcsound import *
import queue
import time
import threading
csound = Csound()
csound.setOption('-odac -d')
csound.compileOrc(r'''
sr = 48000
nchnls = 2
ksmps = 64
0dbfs = 1
''')
thread = csound.performanceThread()
thread.play()
# Create an empty table of 100 elements, let csound assign a number
thread.compileOrc('gi__tab1 ftgen 1, 0, 1024, -10, 1')
# Get a pointer to the table
q = queue.SimpleQueue()
def func(csound, q=q):
tabnum = int(csound.evalCode('return gi__tab1'))
q.put((tabnum, csound.table(tabnum)))
t0 = time.time()
thread.requestCallback(func)
# This blocks until the callback has been called
tabnum, tabarr = q.get()
t1 = time.time()
print(f'elapsed time: {(t1 - t0) * 1000:.3f} ms')
print(f'table shape: {tabarr.shape}', tabarr)
elapsed time: 5.249 ms
table shape: (1024,) [ 0. 0.00613588 0.01227154 ... -0.01840673 -0.01227154
-0.00613588]
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
displays suppressed
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
ALSA output: total buffer size: 1024, period size: 256
writing 512 sample blks of 64-bit floats to dac
SECTION 1:
ftable 1:
We can compare the latency by running the same code with direct access to the API
[2]:
from libcsound import *
import queue
import time
csound = Csound()
csound.setOption('-odac -d')
csound.compileOrc(r'''
sr = 48000
nchnls = 2
ksmps = 64
0dbfs = 1
''')
thread = csound.performanceThread()
thread.play()
# Create a sine table, let csound assign a number
csound.compileOrc('gi__tab1 ftgen 0, 0, 1024, -10, 1')
t0 = time.time()
tabnum = csound.evalCode('return gi__tab1')
tabarr = csound.table(int(tabnum))
t1 = time.time()
print(f'{tabnum=}, elapsed time: {(t1 - t0) * 1000:.3f} ms')
print(f'table shape: {tabarr.shape}', tabarr)
tabnum=101.0, elapsed time: 95.295 ms
table shape: (1024,) [ 0. 0.00613588 0.01227154 ... -0.01840673 -0.01227154
-0.00613588]
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
displays suppressed
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
ALSA output: total buffer size: 1024, period size: 256
writing 512 sample blks of 64-bit floats to dac
SECTION 1:
ftable 101:
WARNING: Buffer underrun in real-time audio output
WARNING: Buffer underrun in real-time audio output
Process Callback#
The performance thread includes a mechanism to register a python callback, which will be fired at each performance cycle. Within this callback python has access to the csound instance without locks. For csound 6, this can solve the problem of added latency to access the csound API whenever a performance thread is used, but might result in audio dropouts within certain threaded contexts.
[2]:
import queue
import time
import random
import libcsound
[6]:
cs = libcsound.Csound()
# Change as needed
# cs.setOption('-odac')
cs.setOption('-+rtaudio=jack -odac:Built-in' )
# Disable printing whenever a new event is scheduled
cs.setOption('-m128')
# The orchestra
cs.compileOrc(r'''
sr = 48000
nchnls = 2
ksmps = 64
0dbfs = 1
instr 1
iamp, ipitch, iattack, irelease passign 4
a0 = oscili(iamp, mtof(ipitch)) + oscili(iamp, mtof(ipitch+0.12))
outall a0 * linsegr:a(0, iattack, 1, iattack*2, 0.2, irelease, 0)
endin
''')
thread = cs.performanceThread()
thread.play()
# This is basically the same as the example before
scale = [0, 2, 3, 5, 7, 8, 10]
pitches = [60 + 12 * octave + step for octave in [0, 1, 2] for step in scale]
chords = [(2, 4, 7), (4, 5), (2, 7, 11), (0, 5, 9), (9, 11), (0, 2), (0, 4, 7)]
def getparams(pitch, chord):
if pitch % 12 in chord:
dur = random.uniform(1.5, 2.5)
amp = random.uniform(0.04, 0.2)
att = random.uniform(0.01, 0.1)
rel = random.uniform(0.4, 0.8)
else:
dur = random.uniform(0.1, 0.2)
amp = random.uniform(0.04, 0.08)
att = 0.01
rel = 0.3
return dur, amp, att, rel
sr = cs.sr()
# We create a callback class in order to hold state between calls
class Callback:
def __init__(self):
self.t0 = cs.currentTimeSamples() / sr
self.tchord = self.t0
self.chord = random.choice(chords)
# This method will be called every time csound process a block
# of samples, with full access to the API
# Notice that we do not need to call .sleep
def __call__(self, data):
t = cs.currentTimeSamples() / sr
if t - self.t0 > 1/8.:
pitch = random.choice(pitches)
dur, amp, att, rel = getparams(pitch, self.chord)
thread.scoreEvent(False, 'i', (1, 0, dur, amp, random.choice(pitches), att, rel))
self.t0 = t
if t - self.tchord > 8:
self.chord = random.choice(chords)
self.tchord = t
thread.record("threading-example2.wav", 16, 4)
thread.setProcessCallback(Callback())
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:Built-in Audio Analog Stereo:playback_FL)
1: dac1 (dac:Built-in Audio Analog Stereo:playback_FR)
2: dac2 (dac:csoundengine.engine0:input1)
3: dac3 (dac:csoundengine.engine0:input2)
4: dac4 (dac:csoundengine.engine0:input3)
5: dac5 (dac:csoundengine.engine0:input4)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac:Built-in
SECTION 1:
[7]:
thread.stopRecord()
Perf thread: stopped recording,
closing file threading-example2.wav
[8]:
thread.stop()
thread.join()
inactive allocs returned to freespace
overall amps: 0.50252 0.50252
overall samples out of range: 0 0
0 errors in performance
Elapsed time at end of performance: real: 43.477s, CPU: 3.037s
8150 512 sample blks of 64-bit floats written to dac:Built-in
[8]:
1
[10]:
sndconvert("threading-example2.wav", ".mp3")
[13]:
import IPython
IPython.display.Audio("threading-example2.mp3")
[13]:
Process Queue#
For convenience the performance thread implements an optional built-in process queue, using the process callback, similar to the example before. When the process queue is set up, it is possible to schedule tasks (callbacks) which are run within the performance loop with full access to the API.
To schedule a task to be run at the next performance cycle the performance thread has a processQueueTask method, which is called with a function expecting the csound object as its first argument.
[6]:
import libcsound
import time
cs = libcsound.Csound()
# Modify as needed
# cs.setOption('-odac')
cs.setOption('-+rtaudio=jack -odac:Built-in -B512 -b256')
cs.compileOrc(r'''
sr = 48000
ksmps = 64
nchnls = 2
0dbfs = 1
instr 1
ipitch = p4
asig = poscil(0.8, mtof(ipitch))
outch 1, asig * linsegr:a(1, 0.2, 0.2, 0.1, 0)
endin
''')
# We create the performance thread with a process queue
thread = cs.performanceThread()
thread.setProcessQueue()
thread.play()
# When using a performance thread it is possible to both output to dac and
# record the audio at the same time
thread.record('with-queue.flac', samplebits=24, numbufs=1)
thread.scoreEvent(0, 'i', (1, 0, 0.5, 72))
# Compilation always happens within one cycle. By performing the compilation within the
# process callback we ensure that the new instrument is ready to be scheduled by the
# performance thread right away. The previous scheduled event (instr 1) and the
# scheduled event after the compilation (instr 10) should be in sync
thread.processQueueTask(lambda cs: cs.compileOrc(r'''
instr 10
ifreq = p4
outch 2, vco2:a(0.6, ifreq) * linsegr:a(1, 0.2, 0.2, 0.1, 0)
endin
'''))
thread.scoreEvent(0, 'i', (10, 0, 0.5, 600))
time.sleep(1)
thread.stopRecord()
cs.stop()
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Jan 3 2025
[commit: 7e3505c5d43b0d433091bc5e9ca973162cc35ce4]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:Built-in Audio Analog Stereo:playback_FL)
1: dac1 (dac:Built-in Audio Analog Stereo:playback_FR)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac:Built-in
SECTION 1:
T 0.016 TT 0.016 M: 0.00000 0.00000
new alloc for instr 1:
T 0.017 TT 0.017 M: 0.79846 0.00000
new alloc for instr 10:
WARNING: rtjack: xrun in real time audio
Perf thread: stopped recording,
closing file with-queue.flac
inactive allocs returned to freespace
overall amps: 0.79846 0.69166
overall samples out of range: 0 0
0 errors in performance
Elapsed time at end of performance: real: 1.032s, CPU: 0.163s
190 512 sample blks of 64-bit floats written to dac:Built-in

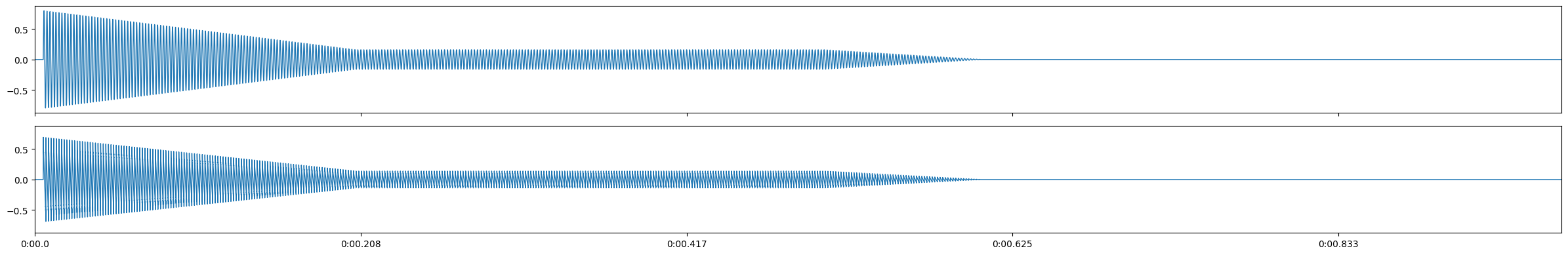

To demonstrate the effect of using a process queue we can plot the generated soundfile.
For that we need first some extra packages which might not be installed in the system
[ ]:
%pip install matplotlib sndfileio
import sndfileio
[5]:
samples, sr = sndfileio.sndread("with-queue.flac")
fig = libcsound._util.waveplot(samples, sr)
For comparison it is possible to try the same without a process queue. The events should be slightly out of sync now
[31]:
import libcsound
import time
cs = libcsound.Csound()
# Modify as needed
# cs.setOption('-odac')
cs.setOption('-+rtaudio=jack -odac:Built-in -B512 -b256' )
cs.compileOrc(r'''
sr = 48000
ksmps = 64
nchnls = 2
0dbfs = 1
instr 1
ipitch = p4
asig = poscil(0.8, mtof(ipitch))
outch 1, asig * linsegr:a(1, 0.2, 0.2, 0.1, 0)
endin
''')
# We create the performance thread without a process queue
thread = cs.performanceThread()
thread.play()
thread.record('no-queue.flac', samplebits=24, numbufs=1)
thread.scoreEvent(0, 'i', (1, 0, 0.5, 72))
# The delay in compilation might take some time now, since the performance thread and the
# csound instance might fight for the API lock
cs.compileOrc(r'''
instr 10
ifreq = p4
outch 2, vco2:a(0.6, ifreq) * linsegr:a(1, 0.2, 0.2, 0.1, 0)
endin
''')
thread.scoreEvent(0, 'i', (10, 0, 0.5, 600))
time.sleep(1)
thread.stopRecord()
cs.stop()
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Dec 4 2024
[commit: ababd1a5e09ada51e5013f24732265a4273f9f09]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:I53:playback_FL)
1: dac1 (dac:I53:playback_FR)
2: dac2 (dac:Built-in Audio Analog Stereo:playback_FL)
3: dac3 (dac:Built-in Audio Analog Stereo:playback_FR)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac:Built-in
SECTION 1:
WARNING: rtjack: xrun in real time audio
T 0.032 TT 0.032 M: 0.00000 0.00000
new alloc for instr 1:
T 0.059 TT 0.059 M: 0.79846 0.00000
new alloc for instr 10:
WARNING: rtjack: xrun in real time audio
Perf thread: stopped recording,
closing file no-queue.flac
inactive allocs returned to freespace
overall amps: 0.79846 0.69166
overall samples out of range: 0 0
0 errors in performance
Elapsed time at end of performance: real: 1.083s, CPU: 0.139s
197 512 sample blks of 64-bit floats written to dac:Built-in
[32]:
samples, sr = sndfileio.sndread("no-queue.flac")
fig = libcsound._util.waveplot(samples, sr)
Interacting with the API with a performance thread#
The simplest way to interact with a running csound process is via channels or tables. In both cases the API can return a pointer, which is seen from python as a numpy array with shared memory between python and csound. Any modification of that array will be seen by csound and vice-versa.
In the following example we create a channel specific to an event in order to control the frequency. This is a somewhat artificial example to show the flexibility of csound’s API
[1]:
import libcsound
import time
import queue
cs = libcsound.Csound()
cs.setOption("-+rtaudio=jack -odac:Built-in -B512 -b256")
cs.compileOrc(r'''
sr = 48000
ksmps = 64
0dbfs = 1
nchnls = 2
instr 1
i_id = p4
Schan = sprintf("kfreq:%d", i_id)
kfreq = chnget:k(Schan)
asig = vco2(0.1, lag:k(kfreq, 0.1))
outch 1, asig
endin
''')
thread = cs.performanceThread()
thread.setProcessQueue()
thread.play()
# This function launches an instance of instr 1
def launch1(noteid, freq, t=0, dur=10):
# A queue to receive the channel pointer once the instance is launched
q = queue.SimpleQueue()
# The actual callback
def task(cs):
# Create a channel specific to this instance
arr, err = cs.channelPtr(f"kfreq:{noteid}", "control")
arr[0] = freq
# Launch the actual instance with the given note id
thread.scoreEvent(0, 'i', (1, t, dur, noteid))
# Put the channel pointer in the queue, this notifies the main thread that we are done
q.put(arr)
# Launch a process task
thread.processQueueTask(task)
# Wait for the task to finish, this returns the channel pointer
return q.get()
# Launch 2 events with ids 1 and 2
score = {1: (0, 10, 800),
2: (1, 10, 810)}
channels = {eventid: launch1(eventid, freq=data[2], t=data[0], dur=data[1]) for eventid, data in score.items()}
time.sleep(2)
# Modify the freq. of event 1
channels[1][0] = 600
time.sleep(3)
cs.stop()
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Dec 4 2024
[commit: ababd1a5e09ada51e5013f24732265a4273f9f09]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 1.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:Built-in Audio Analog Stereo:playback_FL)
1: dac1 (dac:Built-in Audio Analog Stereo:playback_FR)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac:Built-in
SECTION 1:
T 0.001 TT 0.001 M: 0.00000 0.00000
new alloc for instr 1:
WARNING: rtjack: xrun in real time audio
T 1.003 TT 1.003 M: 0.11453 0.00000
new alloc for instr 1:
inactive allocs returned to freespace
overall amps: 0.22848 0.00000
overall samples out of range: 0 0
0 errors in performance
Elapsed time at end of performance: real: 5.041s, CPU: 0.431s
934 512 sample blks of 64-bit floats written to dac:Built-in
Evaluating code#
When using the performance thread, evaluating code and returning a value from csound can result in long latencies at random times.
To prove this we first create a table and return the table number via the API directly. This results in delays between 1 and 20 buffers, which might block execution for up to 100 or more milliseconds, depending on the values of ksmps and the buffer size used.
[7]:
import libcsound
import time
cs = libcsound.Csound()
cs.setOption("-+rtaudio=jack -odac -b256")
cs.compileOrc(r'''
sr = 48000
ksmps = 64
nchnls = 2
''')
# csound.compileOrc(...)
thread = cs.performanceThread()
thread.play()
bufsize = 1024
t0 = time.time()
tabnum = cs.evalCode(f'gi__tabnum ftgen 0, 0, {-bufsize}, -2, 0\nreturn gi__tabnum')
t1 = time.time()
print(f"Created table {tabnum}, took {(t1 - t0) * 1000:.2f} ms")
cs.stop()
Created table 101.0, took 27.70 ms
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 32768.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:Built-in Audio Analog Stereo:playback_FL)
1: dac1 (dac:Built-in Audio Analog Stereo:playback_FR)
2: dac2 (dac:csoundengine.engine0:input1)
3: dac3 (dac:csoundengine.engine0:input2)
4: dac4 (dac:csoundengine.engine0:input3)
5: dac5 (dac:csoundengine.engine0:input4)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac
SECTION 1:
WARNING: rtjack: xrun in real time audio
ftable 101:
ftable 101: 1024 points, scalemax 0.000
inactive allocs returned to freespace
overall amps: 0.0 0.0
overall samples out of range: 0 0
0 errors in performance
Elapsed time at end of performance: real: 0.094s, CPU: 0.049s
11 512 sample blks of 64-bit floats written to dac
With csound 7, calling .evalCode on the performance thread incurs in a delay of at most 2 cycles, plus some added latency due to python overhead. The resulting delay is around 1-3 ms for normal values of ksmps
[9]:
cs = libcsound.Csound()
cs.setOption("-+rtaudio=jack -odac -b256")
cs.compileOrc(r'''
sr = 48000
ksmps = 64
nchnls = 2
''')
# csound.compileOrc(...)
thread = cs.performanceThread()
thread.play()
bufsize = 1024
t0 = time.time()
if libcsound.VERSION >= 7000:
t0 = time.time()
tabnum = thread.evalCode(f'gi__tabnum ftgen 0, 0, {-bufsize}, -2, 0\nreturn gi__tabnum')
t1 = time.time()
else:
thread.setProcessQueue()
t0 = time.time()
q = queue.SimpleQueue()
thread.processQueueTask(lambda cs, q=q: q.put(cs.evalCode(f'gi__tabnum ftgen 0, 0, {-bufsize}, -2, 0\nreturn gi__tabnum')))
tabnum = q.get()
t1 = time.time()
print(f"Created table {tabnum}, took {(t1 - t0) * 1000:.2f} ms")
cs.stop()
Created table 101.0, took 2.30 ms
rtaudio: JACK module enabled
--Csound version 7.0 (double samples) Jan 9 2025
[commit: 2109d3ed8a2a0b28a2b6a516b20a585afddef84d]
libsndfile-1.2.2
graphics suppressed, ascii substituted
sr = 48000.0, kr = 750.000, ksmps = 64
0dBFS level = 32768.0, A4 tuning = 440.0
orch now loaded
audio buffered in 256 sample-frame blocks
system sr: 48000.000000
Jack output ports:
0: dac0 (dac:Built-in Audio Analog Stereo:playback_FL)
1: dac1 (dac:Built-in Audio Analog Stereo:playback_FR)
2: dac2 (dac:csoundengine.engine0:input1)
3: dac3 (dac:csoundengine.engine0:input2)
4: dac4 (dac:csoundengine.engine0:input3)
5: dac5 (dac:csoundengine.engine0:input4)
connecting channel 0 to Built-in Audio Analog Stereo:playback_FL
connecting channel 1 to Built-in Audio Analog Stereo:playback_FR
writing 512 sample blks of 64-bit floats to dac
SECTION 1:
WARNING: rtjack: xrun in real time audio
ftable 101:
ftable 101: 1024 points, scalemax 0.000
inactive allocs returned to freespace
overall amps: 0.0 0.0
overall samples out of range: 0 0
0 errors in performance
Elapsed time at end of performance: real: 0.065s, CPU: 0.051s
6 512 sample blks of 64-bit floats written to dac
[ ]:
